18 Circuit 5A 380VAC Through Bore Slip Ring 12mm Hole

  • 18 Circuit 5A 380VAC Through Bore Slip Ring 12mm Hole
Place of Origin Guangdong, China
Markenname JINPAT
Model Number LPT012-1805
Minimum Order Quantity 1
Preis $116.20-140

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Circuit Number 18 Current Rating 5A
Voltage 380VAC Working Speed 0~300 rpm
Working Temperature -20~+60℃ Dielectric Strength ≥1000V@50Hz between circuits
Insulation Resistance 500MΩ@500VDC Electrical Noise ≤70mΩ
Hole Diameter 12.7mm Contact Material Precious metal
Housing Material Aluminum alloy Humidity ≤60%RH
Protection Grade IP50 Ethernet Rate 10Mbps/100Mbps/1000Mbps
USB Version USB2.0
Hervorheben

18 circuit through bore slip ring

,

5A 380VAC slip ring

,

12mm hole slip ring
Produkt-Beschreibung
Electric Through Bore Slip Ring - 12mm Hole Size, 18 Circuit, 5A
Product Specifications
Attribute Value
Type Electronic Accessories
Circuit Number 18
Current Rating 5A
Voltage 380VAC
Working Speed 0~300 rpm
Working Temperature -20~+60℃
Product Description

Bargain Price Only in Alibaba

LPT series are through-bore slip rings designed with a center hole that can accommodate drive shafts or gas-liquid passages. These slip rings can integrate high frequency, fiber, encoder, waveguide, gas and liquid joints. The advanced fiber brush technology ensures reliable contact under extremely low friction.

Key Features
  • Transmits both analog and digital signals
  • Mixed transmission of power and signals including:
    • Ethernet (10Mbps/100Mbps/1000Mbps)
    • Industrial Ethernet protocols
    • HD video signals (SDI, LVDS)
    • Serial communication (RS232, RS485, RS422)
    • USB2.0
    • Industrial Fieldbus protocols
    • Sensor signals (thermal resistance, thermocouple, strain gauge)
  • Long service life with maintenance-free operation
  • Easy installation
Technical Specifications
Circuits 18
Current Rating 5A
Voltage 380VAC
Dielectric Strength ≥1000V@50Hz between circuits
Insulation 500MΩ@500VDC
Electrical Noise ≤70mΩ
Hole Diameter 12.7mm
Working Speed 0~300 RPM
Contact Material Precious metal
Housing Material Aluminum alloy
Working Temperature -20~+60℃
Humidity ≤60%RH
Protection Grade IP50
Applications
  • Industrial automation equipment
  • Medical equipment
  • Wind power equipment
  • Test equipment
  • Exhibition and display equipment
  • Robots
  • Turntable equipment
  • Amusement equipment
  • High-speed railway equipment
  • Packaging machinery
  • Ship offshore equipment
  • Construction machinery
  • Radar antenna
  • Rotary Platform
  • Engineering machines
  • Packaging Machines
Product Images

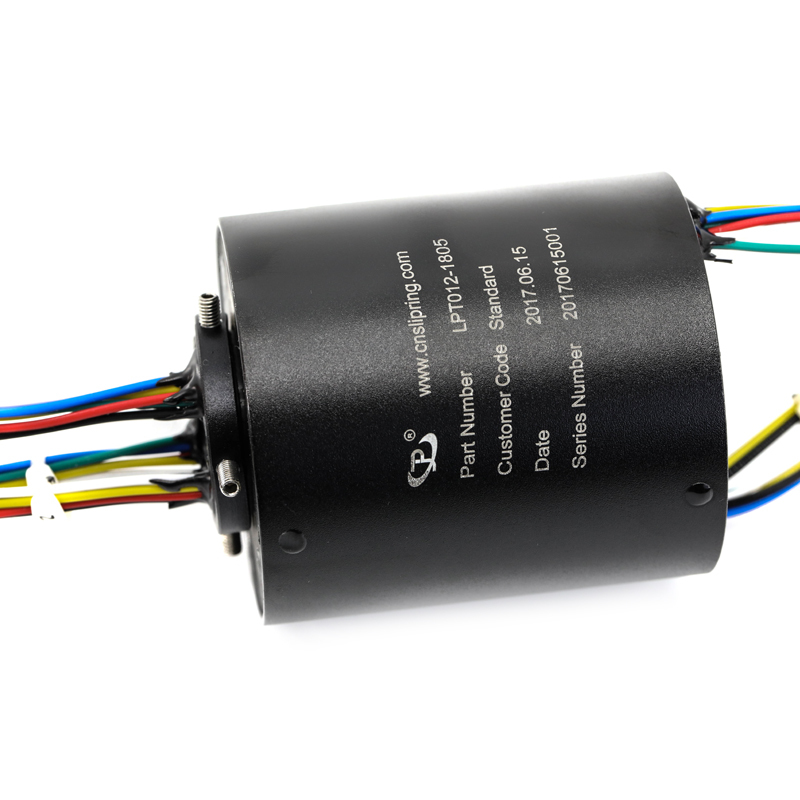

18 Circuit 5A 380VAC Through Bore Slip Ring 12mm Hole 0
18 Circuit 5A 380VAC Through Bore Slip Ring 12mm Hole 1
Company Advantages
  • 12,000 square meter production facility with over 500 employees
  • Recognized as "National High and New Technology" enterprise with 69 patents
  • Long-term partnerships with global enterprises and worldwide agents
  • Over 10,000 successful designs for civil, military, commercial and industrial applications
  • Established in 1996 with more than 20 years of production and R&D experience
  • Free custom slip ring solutions for various equipment requirements
  • Fast delivery times
18 Circuit 5A 380VAC Through Bore Slip Ring 12mm Hole 2
Frequently Asked Questions
What do we do?

We focus on developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.

What is a slip ring?

A slip ring is an electromechanical device that allows transmission of power and electrical signals from stationary to rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires.

What kinds of slip rings do we provide?
  • Electrical Slip rings (capsule, through-bore, miniature)
  • Signal Slip rings (USB, fiber optic, high frequency)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
How do I choose a slip ring?

Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom solutions.

Do you provide custom slip rings?

Yes, our engineers will develop perfect solutions for your specific needs. Contact us to begin the custom design process.
