6 Circuit 1A 240VAC Mini Slip Ring for High Precision Equipment

  • 6 Circuit 1A 240VAC Mini Slip Ring for High Precision Equipment
Herkunftsort Guangdong, China
Markenname JINPAT
Modellnummer LPM-06B
Min Bestellmenge 1
Preis $10

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Schaltungsnummer 6 Aktuelle Bewertung 1a
Stromspannung 240 VAC Dielektrische Stärke ≥500 V@50 Hz zwischen Schaltungen
Isolierung 100MΩ@500VDC Elektrisches Geräusch ≤15mΩ
Arbeitsgeschwindigkeit 0 bis 300 U/min Kontaktmaterial Edelmetall
Drahtgröße 30# silberplattierte Kupfer ul, Teflon Bleidrahtlänge Rotor: 250mm; Ständer: 250mm
Arbeitstemperatur -20~+60℃ Luftfeuchtigkeit ≤60%RH
Schutznote IP54 Stil Kapsel-Schleifring
Kontaktart Goldkontakte
Hervorheben

6 circuit mini slip ring

,

240VAC high precision slip ring

,

1A rotary slip ring
Produkt-Beschreibung
Slip Ring VW 6 Wires with 1A Current & Low Electrical Noise
High Precision Mini Slip Ring for Industrial Applications
Key Features
  • 6 circuits with 1A current rating
  • Low electrical noise (≤15mΩ)
  • Gold contacts at rotary interface
  • Color-coded lead wires for easy installation
  • Compact capsule slip ring design
Product Specifications
Attribute Value
Type Electronic Accessories
Circuit Number 6
Current Rating 1A
Voltage 240VAC
Working Speed 0~300 rpm
Working Temperature -20~+60℃
Style Capsule slip ring
Dielectric Strength ≥500V@50Hz between circuits
Insulation 100MΩ@500VDC
Wire Size 30# silver plated copper UL, Teflon
Lead Wire Length Rotor:250mm; Stator:250mm
Humidity ≤60%RH
Protection Grade IP54
Product Description

The LPM-06B miniature slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating parts. This standard off-the-shelf unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.

Applications
  • Electric devices
  • Medical facilities
  • Industrial machinery
  • LED industry
  • Medical equipment
  • High-precision facilities
Product Images

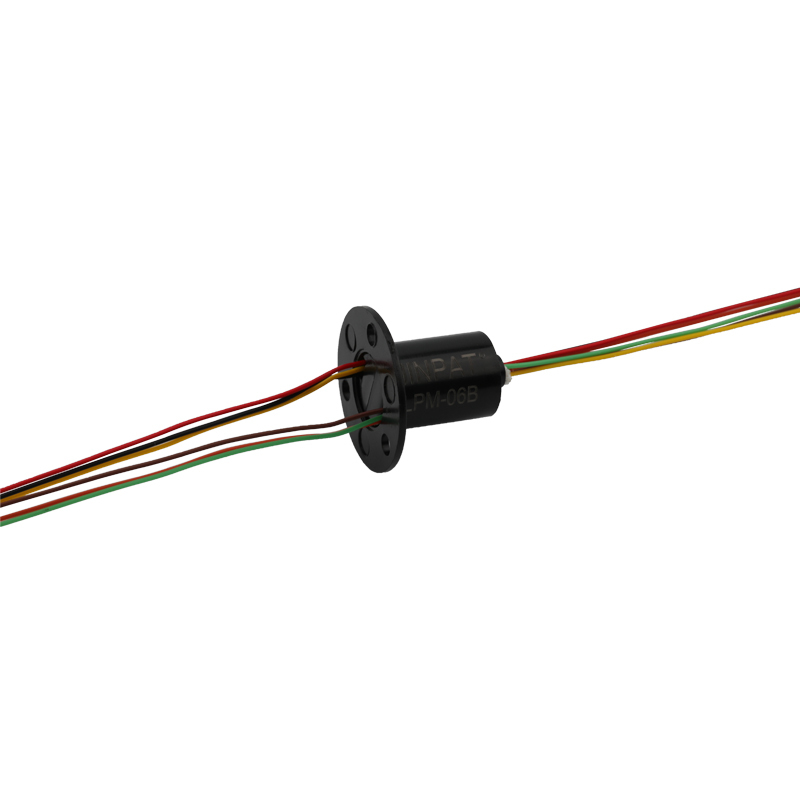

6 Circuit 1A 240VAC Mini Slip Ring for High Precision Equipment 0 6 Circuit 1A 240VAC Mini Slip Ring for High Precision Equipment 1
Manufacturer Advantages
  • 12,000 square meter plant with 500+ employees
  • National High and New Technology award recipient with 69 patents
  • 20+ years of production and R&D experience since 1996
  • 10,000+ successful designs for civil, military, commercial and industrial applications
  • Free custom slip ring solutions available
  • Fast delivery times
Frequently Asked Questions
What is a slip ring?

A slip ring is an electromechanical device that allows transmission of power and electrical signals from a stationary to a rotating structure. It improves mechanical performance, simplifies system operation, and eliminates damage-prone wires.

How do I choose a slip ring?

Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom solutions.
