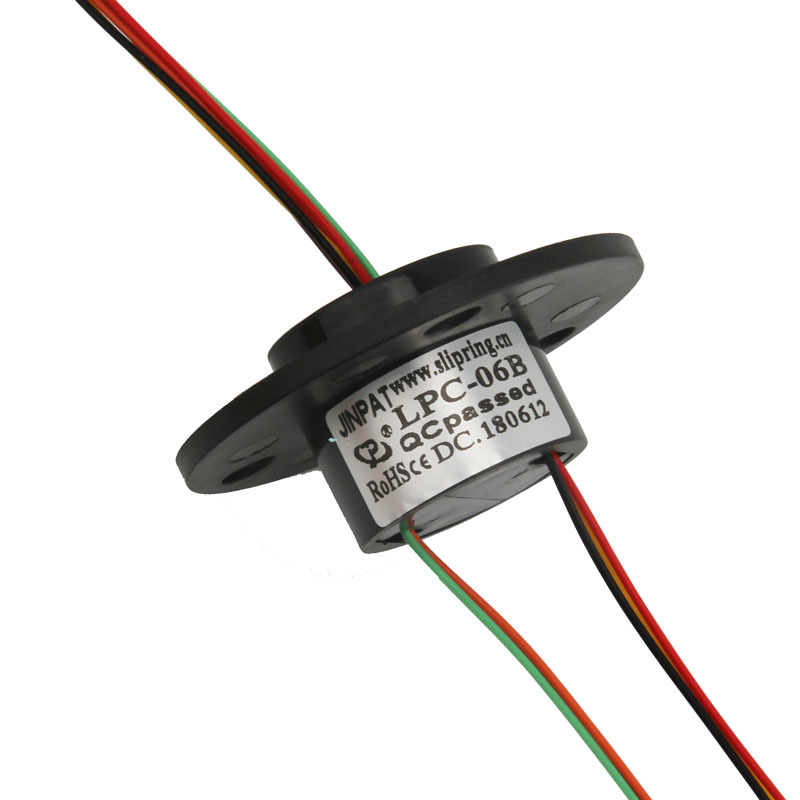

6 Circuit Gold Contact Slip Ring 2A 300 RPM LPC-06B
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skypen: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Schutznote | IP54 | Arbeitsgeschwindigkeit | 300 U / min |
|---|---|---|---|
| Schaltungen | 6 | Aktuelle Bewertung | 2A oder höheres |
| Stromspannung | 240 VAC | Arbeitstemperatur | -40~+80℃ |
| Kontaktmaterial | Gold zum Gold | Kabelspezifikation | AWG28#, versilbertes Teflon, ul |
| Bleidrahtlänge | Rotor: 250mm; Ständer: 250mm | Isolierung | 1000mΩ@500VDC |
| Dielektrische Stärke | / | Elektrisches Geräusch | / |
| Kontaktwiderstand | sehr niedrig | Betriebsstabilität | Hoch |
| Drehmoment | Niedrig | ||
| Hervorheben | 6 circuit gold contact slip ring,2A 300 RPM slip ring,LPC-06B rotary slip ring |
||
Produkt-Beschreibung
Mini Type Wind Turbine Slip Rings 6 Circuits 2A 300 RPM
Miniature Capsule Slip Ring, 6 Channel Flat Slip Ring
Product Specifications
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Typical Application | Rotary Table |
| Optional | Rotating Speed |
| Contact Material | Gold-Gold |
| Features | Very Low Contact Resistance |
Product Description
Bargain Price Only in Alibaba
The LPC-06B capsule slip ring/6 channel flat slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating components.
This standard off-the-shelf unit features gold contacts at the rotary interface with color-coded lead wires on both stator and rotor for simplified electrical connections.
LPC-06B Slip Ring Parameters
| Parameter | Value |
|---|---|
| Protection Grade | IP54 |
| Working Speed | 300 RPM |
| Circuits | 6 |
| Current Rating | 2A or higher |
| Voltage | 240VAC |
| Working Temperature | -40°C to +80°C |
| Electric Contact Material | Gold to Gold |
| Wire Specification | AWG28#, silver plated Teflon, UL |
| Lead Wire Length | Rotor: 250mm; Stator: 250mm |
| Insulation | 1000MΩ@500VDC |
LPC-06B Slip Ring Applications
- Electric devices
- Motor equipment
- Industrial machinery
- LED industry
- Medical equipment
- Process control equipment
- Monitoring systems
- Electrical testing equipment
- Military rotary tables
- Robotics
- Rotating platforms
- Display and demonstration equipment
- Instruments and meters
LPC-06B Slip Ring Features
- High durability and long life
- Very low contact resistance
- Compatible with data bus protocols
- Smooth operation and high stability
- Low torque requirements
- Supports various data signal types
- Compact structural design
Product Visuals
Manufacturer Advantages
JINPAT Electronics provides free custom slip ring solutions, creating propulsion for your technology:
- 12,000+ square meter facility with 500+ employees
- National High and New Technology award recipient with 69 patents
- Global partnerships with renowned enterprises
- 10,000+ successful designs across civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Custom solutions for diverse equipment requirements
- Fast delivery capabilities
