High Frequency RF Slip Ring 50MHz-3GHz SDI Signal Low Noise

  • High Frequency RF Slip Ring 50MHz-3GHz SDI Signal Low Noise
Herkunftsort Guangdong, China
Markenname JINPAT
Modellnummer LPC-1C1202
Min Bestellmenge 1
Preis $85

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Bandbreite 50MHz-3GHz Signalart SDI
Schutznote IP54 Arbeitsgeschwindigkeit 50 U / min
Schaltungen 12 Aktuelle Bewertung 2A oder höheres
Stromspannung 240 VAC Arbeitstemperatur -20~+60℃
elektrischer Kontakt Gold zum Gold Luftfeuchtigkeit 60% RH
Bleidrahtlänge Rotor: 250mm; Ständer: 250mm Isolationsresistenz 1000mΩ@500VDC
Wohnmaterial Aluminiumlegierung Charakteristische Impedanz 50 Ω
Drehung 360° ununterbrochen
Hervorheben

high frequency RF slip ring

,

50MHz-3GHz SDI slip ring

,

low noise rotary slip ring
Produkt-Beschreibung
High Frequency RF Slip Ring
360° continuous rotation with compact design for electrical applications
Product Attributes
Attribute Value
Type Electronic Accessories
Bandwidth 50MHz-3GHz
Signal SDI
Features Remote Control
Advantage Low electrical noise
Product Description

The LPC-1C1202-A slip ring is a specialized unit with RF Coaxial Connector featuring a bandwidth of 50MHz-3GHz. Color-coded lead wires on both stator and rotor simplify electrical connections.

Utilizing a 90° V-groove ring design, the LPC-1C1202 delivers smoother operation, lower torque, and reduced electrical noise compared to competitive models.

Technical Parameters
Parameter Value
Protection Grade IP54
Working Speed 50 RPM
Circuits 12
Current Rating 2A or higher
Voltage 240VAC
Working Temperature -20°C to +60°C
Electric Contact Material Gold to Gold
Humidity 60%RH
Lead Wire Length Rotor: 250mm; Stator: 250mm
Insulation 1000MΩ@500VDC
Housing Material Aluminum Alloy
Characteristic Impedance 50Ω
Key Advantages
  • Low torque minimizes system torque budget
  • Compact design fits demanding space requirements
  • Smooth running operation
  • Low electrical noise for clean signal transmission
  • Quick shipment available for urgent requirements
  • 360° continuous rotation capability
  • High bandwidth transfer performance
  • SDI signal transfer capability
Typical Applications
  • Electrical test equipment
  • Manufacturing and process control systems
  • Indexing tables
  • CCTV pan/tilt camera mounts
  • Robotics and rotary sensors
  • Emergency illumination equipment
  • Exhibit and display systems
  • Aviation, military, medical, and instrumentation equipment
Product Visuals

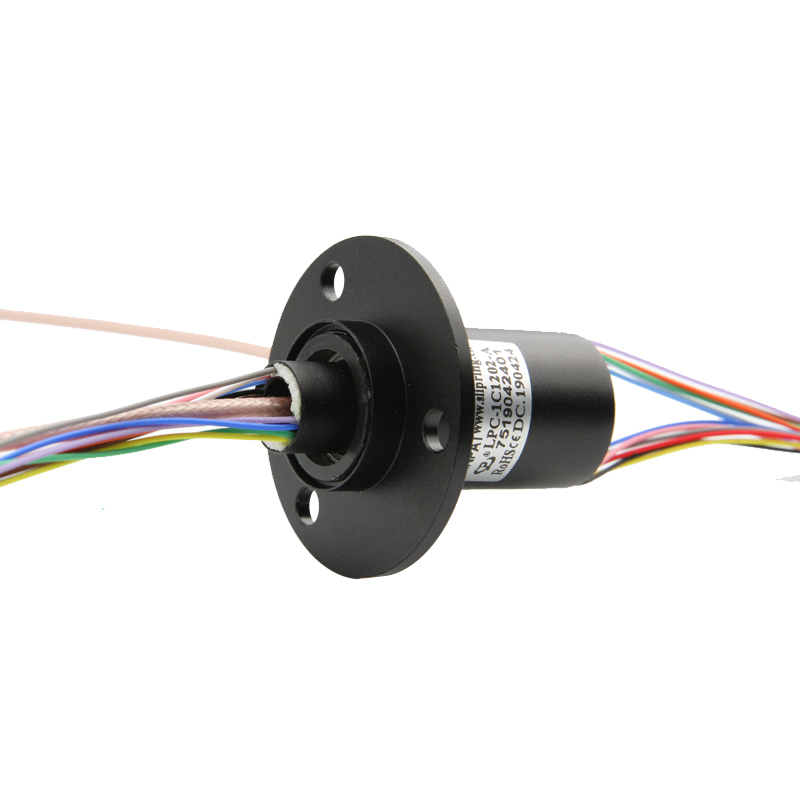

High Frequency RF Slip Ring 50MHz-3GHz SDI Signal Low Noise 0 High Frequency RF Slip Ring 50MHz-3GHz SDI Signal Low Noise 1
