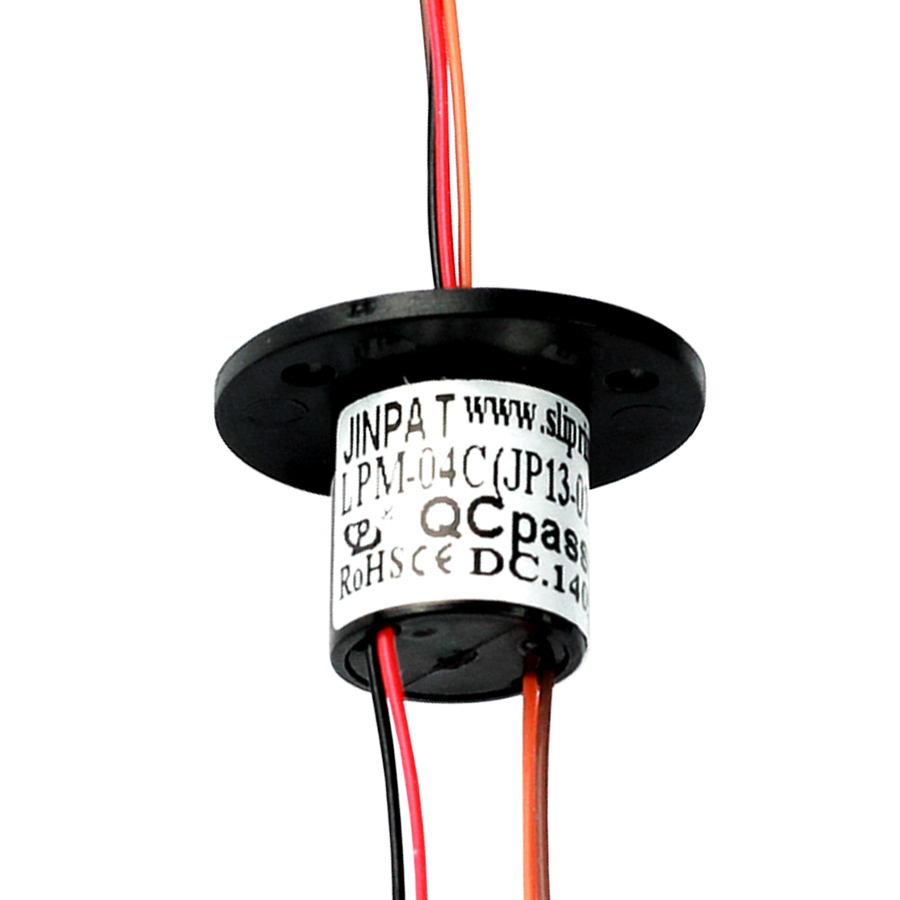

4 Circuit Miniature Slip Ring for Robot Arm 200RPM 240V
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skypen: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Anzahl der Schaltungen | 4 | Arbeitsgeschwindigkeit | 200 Upm Max |
|---|---|---|---|
| Stromspannung | 240VDC/AC | Aktuelle Bewertung | 2a/4a pro Draht |
| Wohnmaterial | Aluminiumlegierung | Schutznote | IP65 |
| Kontaktmaterial | Silber zu Silber | Betriebstemperatur | -30~+80 °C |
| Maximale Stromversorgung | 600A pro Kreis | Signalkanäle | Optional |
| Drahtverbindung | Optional | Wartungsfrei | 2 Jahre |
| Schockdes Design | Ja | Niedertemperaturwiderstand | Ja |
| Kompatibilität mit Encoder | Absolutes Encoder verfügbar | ||
| Hervorheben | miniature slip ring for robot arm,4 circuit slip ring 240V,rotary slip ring 200RPM |
||
Produkt-Beschreibung
Small Size Capsule Slip Ring With 4 Circuits Digital Signals Transmission, Low Torque
Product Specifications
| Attribute | Value |
|---|---|
| Type | Electronic Accessories, miniature slip ring |
| Number of circuits | 4 |
| Working speed | 200rpm max. |
| Voltage | 240VDC/AC |
| Current rating | 2A/4A per wire |
| Feature | Robot arm, Remote Control |
Product Description
A slip ring is a rotary coupling used to transfer electric current from a stationary unit to a rotating unit. This is accomplished by either:
- Holding the center core stationary while the brushes and housing rotate around it.
- Holding the brushes and housing stationary while the center core is allowed to rotate.
Key Features
- Compact structure with flexible installation
- Reliable and durable for long-term operation
- Aluminum alloy housing with IP65 protection grade - suitable for dusty environments
- Alloy brush with precious contact material (silver to silver) for excellent conductivity and low signal loss
- Shockproof design with operating temperature range: -30°C to +80°C
- Compatible with absolute encoders and potentiometers
- Power supply up to 600 amperes per circuit with optional signal channels and wire connection methods
- Short delivery time with available customized solutions
- Long lifespan with maintenance-free operation for 2 years
Product Benefits
- Compact size for space-constrained applications
- Low friction operation
- Long life and high reliability
- Quick delivery and cost-effective solution
- Easily customizable to specific requirements
- CE and RoHS compliant
Manufacturer Advantages
Welcome to JINPAT Electronics - Providing free custom slip ring solutions to propel your technology forward.
- 12,000+ square meter facility with 500+ employees
- Recognized as "National High and New Technology" enterprise with 69 patents
- Global partnerships with renowned enterprises and worldwide agents
- 10,000+ successful designs across civil, military, commercial, and industrial applications
- Established in 1996 with over 20 years of production and R&D experience
- Free custom solutions adaptable to various equipment requirements
- Fast delivery times
Typical Applications
