Hollow Shaft Slip Ring 6x35A 4x10A 250mm for Packaging Machinery
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skypen: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Klingelstrom | 6*35A+4*10a+1*PowerLink -Signal | Betriebsgeschwindigkeit | 0-20 U / min |
|---|---|---|---|
| Isolationsresistenz | ≥500mΩ@500VDC (Leistung) ； ≥ 100mΩ@100VDC (Signal) | Schalenmaterial | Aluminiumlegierung + Edelstahl |
| Bleidrahtlänge | Rotor: 500 mm ； Stator: 10000 mm | Betriebstemperatur | -20 ℃ ~+60 ℃ (industriell) |
| Innendurchmesser （id） | Ø250mm | Lebensdauer | ＞ 50 Millionen U / min |
| Stromspannung | 60 V/48 V DC | Luftfeuchtigkeit | ≤60%RH |
| Schutzniveau | IP54 （Vertikale Installation） | ||
| Hervorheben | Hollow shaft slip ring for packaging machinery,6x35A 4x10A rotary slip ring,250mm hollow shaft slip ring |
||
Produkt-Beschreibung

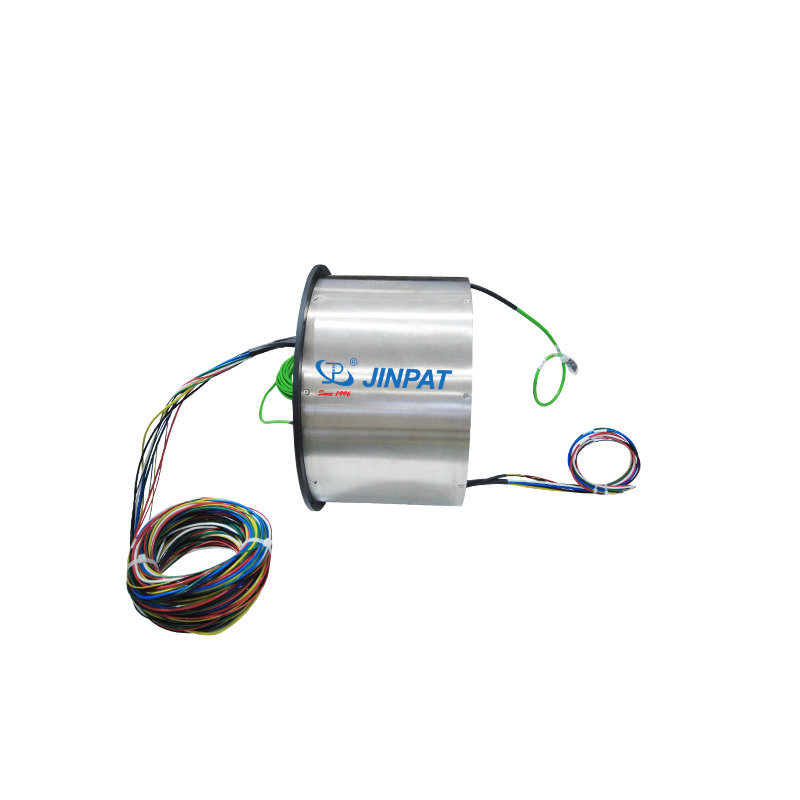

Hollow Shaft Slip Ring 6*35A+4*10A for Packaging Machinery Ø250mm
Key Specifications
| Attribute | Value |
|---|---|
| Ring Current | 6*35A+4*10A+1*Powerlink Signal |
| Operating Speed | 0-20 rpm |
| Insulation Resistance | ≥500MΩ@500VDC(Power)；≥100MΩ@100VDC(Signal) |
| Shell Material | Aluminum alloy + Stainless steel |
| Lead Wire Length | Rotor:500mm；Stator:10000mm |
| Operating Temperature | -20℃~+60℃ (Industrial) |
| Inner Diameter (ID) | Ø250mm |
| Lifespan | ＞50 million rpm |
| Voltage | 60V/48V DC |
| Humidity | ≤60%RH |
| Protection Level | IP54 (Vertical Installation) |
Product Description
High-performance hollow shaft slip ring specifically designed for packaging machinery applications. This robust component features a durable aluminum alloy and stainless steel construction with an IP54 protection rating for vertical installation.
Key Features
- 6 power circuits * 35A + 4 circuits * 10A current capacity
- Integrated Powerlink signal transmission
- Dual-material construction: aluminum alloy + stainless steel
- Extended lead wire lengths (500mm rotor, 10000mm stator)
- Industrial-grade operating temperature range (-20℃ to +60℃)
- High durability with lifespan exceeding 50 million rotations
- Compact design with Ø250mm inner diameter
- IP54 protection for demanding industrial environments
Applications
Ideal for various packaging machinery applications requiring reliable power and signal transmission in rotating systems. The robust construction and high current capacity make it suitable for continuous operation in industrial environments.
