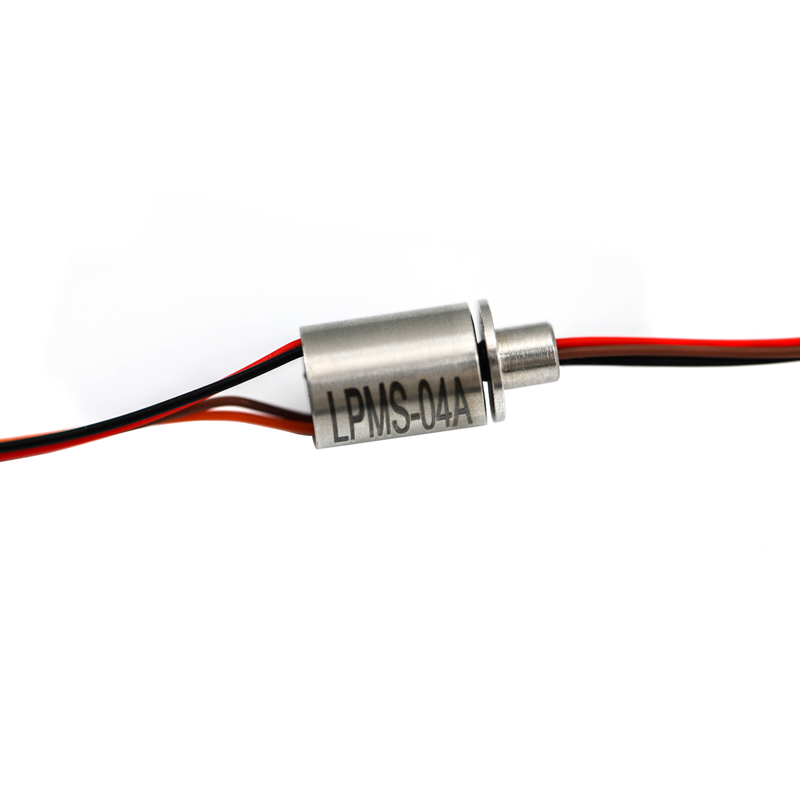

48VAC 4-Wire Miniature Slip Ring 1A Current 100 RPM Speed

  • 48VAC 4-Wire Miniature Slip Ring 1A Current 100 RPM Speed
  • 48VAC 4-Wire Miniature Slip Ring 1A Current 100 RPM Speed
Herkunftsort Guangdong, China
Markenname JINPAT
Modellnummer LPMS-04A
Min Bestellmenge 1
Preis $18.50

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Schaltungsnummer 4 Aktuelle Bewertung 1a
Stromspannung 48VAC Arbeitsgeschwindigkeit 0~100 U/min
Arbeitstemperatur -20~+60℃ Elektrisches Geräusch ≤15mΩ
Kontaktmaterial Edelmetall Wohnmaterial Edelstahl
Drahtgröße 30# silberplattierte Kupfer ul, Teflon Bleidrahtlänge Rotor: 250mm; Ständer: 250mm
Schutznote IP54 Stil Kapsel-Schleifring
Typ elektronische Zusätze Kontaktart Goldkontakte
Farbe des Drahtes Farbunterlegt
Hervorheben

48VAC miniature slip ring

,

4-wire slip ring 1A current

,

capsule slip ring 100 RPM
Produkt-Beschreibung
48 VAC 4-Wire Super Miniature Slip Ring with Light Small Figure Illumination Electrical Contacts
Product Description
The LPMS-04A super miniature slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating parts. This standard off-the-shelf unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.
Specifications
Circuits 4
Current Rating 1A
Voltage 48 VAC
Electrical Noise ≤15mΩ
Working Speed 0~100 RPM
Contact Precious metal
Housing Stainless steel
Wire Size 30# silver plated copper UL, Teflon
Lead Wire Length Rotor:250mm; Stator:250mm
Working Temperature -20~+60℃
Protection Grade IP54
Main Applications
  • Electric devices
  • Medical facilities
  • Industrial machinery
  • LED industry
  • Medical equipment
  • Process control equipment
Product Images
48VAC 4-Wire Miniature Slip Ring 1A Current 100 RPM Speed 0 48VAC 4-Wire Miniature Slip Ring 1A Current 100 RPM Speed 1
Our Advantages
  • 12,000 square meter production facility with 500+ employees
  • Recognized as "National High and New Technology" enterprise with 69 patents
  • Global partnerships with renowned enterprises and agents worldwide
  • Over 10,000 successful designs for civil, military, commercial and industrial applications
  • Established in 1996 with 20+ years of production and R&D experience
  • Free custom slip ring solutions for various equipment requirements
  • Fast delivery service
Welcome to JINPAT Electronics 48VAC 4-Wire Miniature Slip Ring 1A Current 100 RPM Speed 2
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that enables power and electrical signal transmission between stationary and rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires.
What kinds of slip rings do we offer?
  • Electrical Slip Rings (capsule, through-hole, miniature, etc.)
  • Signal Slip Rings (USB 2.0/3.0, fiber optic rotary joints, high frequency, etc.)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom/modified solutions.
Do you offer custom slip rings?
Yes, our engineers can develop perfect solutions for your specific needs. Contact us to discuss custom requirements.
