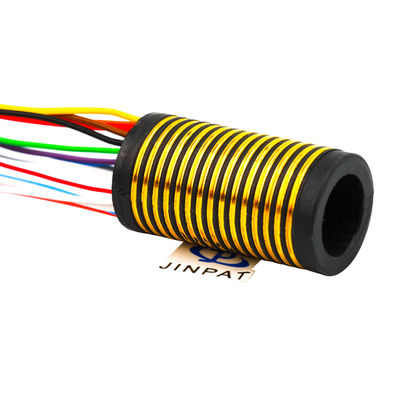

15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission

  • 15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission
Herkunftsort Guangdong, China
Markenname JINPAT
Modellnummer LPS-15
Min Bestellmenge 1
Preis $100

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Höchstgeschwindigkeit 100 U / min Anzahl der Schaltungen 15
Stromspannung 240 VAC/DC Aktuelle Bewertung 2a
Temperaturbereich -20 ℃ bis +60 ℃ Arbeitsfeuchtigkeit 60% RH oder mehr
Kontaktmaterial Gold zum Gold Bleigröße 28 # silbernes überzogenes Kupfer
Leitungslänge Standard 250 Millimeter (9.843inch) Dielektrische Stärke ≥200 VAC @50 Hz, zwischen jeder Schaltung
Körpermaterial Kunststoff für technische Plastik Isolationsresistenz 50 MΩ @ 500 VDC
Elektrisches Geräusch ≤ 35 MΩ Betriebsgeschwindigkeit 0-100 U/min
Bandbreitenübertragung Hoch
Hervorheben

15 Circuit Slip Ring

,

100 rpm Separate Slip Ring

,

250mm Lead Length Rotary Electrical Connector
Produkt-Beschreibung
15 Circuit Smooth Running Low Electrical Noise Separate Slip Ring
Gold to Gold Contact for Electrical Contacts Contact Materials

Separate slip ring consists of two parts: rotor and brush block. The rotor part can have a through bore type, making it suitable for space-limited installations. This slip ring can use pins instead of lead wires to handle larger currents.

The LPS-15 is a standard unit featuring gold contacts at the rotary interface with color-coded lead wires on both stator and rotor for simplified electrical connections.

Key Advantages
  • 250mm standard lead length
  • Gold to gold contact materials for extended lifespan
  • Flexible, color-coded, silver-plated wiring
  • Capable of transmitting both power and signal data
  • High bandwidth transfer capability
Primary Applications
  • Indexing tables
  • CCTV pan/tilt camera mounts
  • Robotics and rotary sensors
  • Emergency illumination equipment
  • Exhibit and display equipment
  • Medical equipment
  • Aviation, military, and instrumentation
  • Miniature wire-rolling machines
Customization Options
  • Circuits & current capacity
  • Operational speed
  • Dimensions
  • Lead wire length
  • Contact and housing materials
Technical Specifications
Parameter Specification
Operating Speed 0-100 rpm
Number of Circuits 15
Voltage 240 VAC/DC
Current Rating 2A
Temperature Range -20℃ to +60℃
Working Humidity 60%RH or higher
Contact Material Gold to Gold
Lead Size 28 AWG silver-plated copper
Lead Length Standard 250 mm (9.843 inch)
Dielectric Strength ≥200 VAC @50Hz between circuits
Body Material Engineering plastic
Insulation Resistance 50 MΩ @ 500 VDC
Electrical Noise ≤35mΩ
15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission 0 15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission 1 15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission 2 15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission 3
