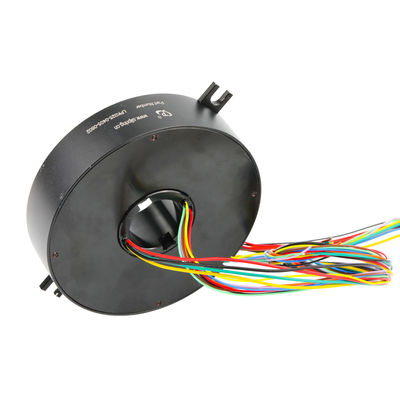

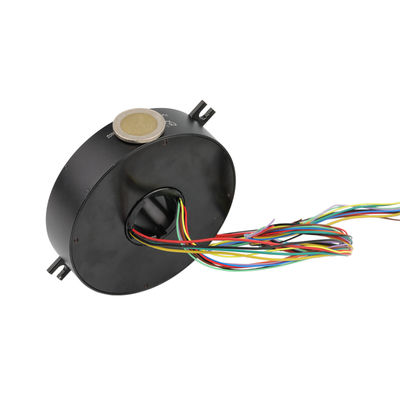

4/8 Circuits Pancake Slip Ring with 220VDC/AC Voltage Rating and 5A/2A Current Rating
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skypen: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Schaltungen | 4/8 Schaltungen | Nennspannung | 220 VDC/AC oder höher |
|---|---|---|---|
| Aktuelle Bewertung | 5A/2A pro Stromkreis | Kontaktmaterial | Edelmetall |
| Arbeitsgeschwindigkeit | 0 ~ 50 U / min | Dielektrische Stärke | ≥1000V@50Hz (Strom) ≥500V@50Hz (Signal) |
| Isolationsresistenz | 500 MΩ bei 500 VDC (Strom) 100 MΩ bei 300 VDC (Signal) | Drahtlänge | Statordraht: 300 mm Rotordraht: 300 mm |
| Betriebstemperatur | -20 ° C ~+60 ° C. | Luftfeuchtigkeit | ≤60%RH |
| IP-Bewertung | IP54 | Wohnmaterial | Oxidationsschwarz aus Aluminiumlegierung |
| Dicke | 6mm | Kontaktart | Nobel-Metall |
| Installationsmethode | Der Stator wird auf der vom Kunden bereitgestellten Spindel befestigt | ||
| Hervorheben | 4/8 Circuits Pancake Slip Ring,220VDC/AC Voltage Rating Slip Ring,5A/2A Current Rating Pancake Slip Ring |
||
Produkt-Beschreibung
Wide Range Temperature Working Pancake Slip Ring Electrical Contacts and Contact Materials
Bargain Price Only in Alibaba
The LPK series is a group of Pancake Slip Rings manufactured by JINPAT with thickness as small as 6mm. Designed exclusively for rotation systems with limited vertical installation space, these slip rings feature copper ring and brush contacts surrounding a central hole for maximum space efficiency.
Key Features
- High rotating speed capability
- Reliable contact with lightweight design
- Extremely low physical noise operation
- Continuous 360° rotation for power and signal transmission
- No interference or connection drop during operation
Product Advantages
- Ready-made photoelectric encoder option
- Choice of solid or hollow shafts
- Rapid delivery available
- Custom solutions tailored to your needs
Technical Specifications
| Electronic & Electrical | Mechanical | ||
|---|---|---|---|
| Circuits | 4 circuits × 5A / 8 circuits × 2A | Working Speed | 0-50rpm |
| Working Voltage | 220VDC/AC | Contact | Nobel Metal |
| Dielectric Strength | ≥1000V@50Hz (Current) ≥500V@50Hz (Signal) | Housing | Oxidation Black of Aluminum Alloy |
| Insulation | 500MΩ@500VDC (Current) 100MΩ@300VDC (Signal) | Wire Length | Stator Wire: 300mm / Rotor Wire: 300mm |
| Environment | Remarks | ||
| Temperature | -20°C to +60°C | Installation Method | Stator fixed on customer-provided spindle |
| Humidity | ≤60%RH | ||
| IP Rating | IP54 | ||
Main Applications
- Packaging and wrapping machinery
- Semiconductor handling systems
- Industrial machinery
- Exhibit display machinery
- Medical equipment
- Rotary index tables
- Process control equipment
Company Advantages
- 12,000+ square meter facility with 500+ employees
- National High and New Technology award recipient with 69 patents
- Global partnerships with renowned enterprises
- 10,000+ successful designs across civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Free custom slip ring solutions for diverse equipment requirements
- Fast delivery service
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high quality slip rings, offering comprehensive solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that enables power and electrical signal transmission between stationary and rotating structures. It enhances mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires in movable joints.
What kinds of slip rings do we offer?
- Electrical Slip Rings (capsule, through-bore, miniature)
- Signal Slip Rings (USB 2.0/3.0, fiber optic rotary joints, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and current per circuit, operating speed, and mounting type. For custom solutions or selection assistance, contact our engineering team.
Do you offer custom slip rings?
Yes, our engineers develop perfect custom solutions tailored to your specific requirements. Contact us to discuss your application needs.
