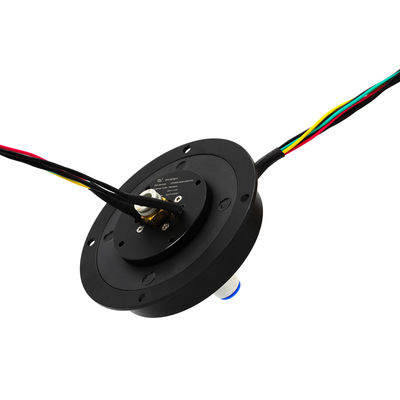

JINPAT Pancake Slip Ring with 10 Circuits 5A per Circuit and 220VDC/AC Voltage Rating for Industrial Applications

  • JINPAT Pancake Slip Ring with 10 Circuits 5A per Circuit and 220VDC/AC Voltage Rating for Industrial Applications
Herkunftsort Guangdong, China
Markenname JINPAT
Modellnummer LPK000-0405-01E2
Min Bestellmenge 1
Preis $510

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Schaltungen 10 Schaltungen Aktuelle Bewertung 5A pro Stromkreis
Nennspannung 220 VDC/AC oder höher Kontaktmaterial Edelmetall
Arbeitsgeschwindigkeit 0 ~ 50 U / min Dielektrische Stärke ≥500VAC@50Hz (Strom) ≥300VAC@50Hz (Signal)
Isolationsresistenz 300 MΩ bei 500 VDC (Strom) 100 MΩ bei 300 VDC (Signal) Betriebstemperatur -40 ° C ~+60 ° C.
Luftfeuchtigkeit ≤60%RH IP-Bewertung IP54
Drahtlänge Statordraht: 1000 mm Rotordraht: 1000 mm Wohnmaterial Aluminiumlegierung
Dicke 6mm Ethernet-Schaltungen 1 Schaltkreise*100M
Kontaktart Nobel-Metall
Hervorheben

10 Circuits Pancake Slip Ring

,

5A per Circuit Slip Ring

,

220VDC/AC Voltage Rating Rotary Electrical Connector
Produkt-Beschreibung
JINPAT Pancake Slip Ring 10 Circuits 5A Ethernet 220VDC/AC Precious Metal Contacts

Bargain Price Only in Alibaba

The LPK series is a group of Pancake Slip Rings manufactured by JINPAT with thickness as small as 6mm. Designed exclusively for rotation systems with limited vertical installation space, these slip rings feature both copper ring and brush contact surrounding a central hole for maximum space efficiency.

Key Features
  • High rotating speed capability
  • Reliable contact with lightweight design
  • Extremely low physical noise operation
  • 360° continuous rotation for power and signal transmission
  • No interference or connection drop during operation
Product Advantages
  • Ready-made photoelectric encoder option
  • Choice of solid or hollow shafts
  • Rapid delivery available
  • Custom solutions tailored to your needs
Technical Specifications
Electronic & Electrical Mechanical
Circuits 4 circuits × 5A / 1 circuit × 100M Ethernet Working Speed 0-50rpm
Working Voltage 220VDC/AC Contact Nobel Metal
Dielectric Strength ≥500VAC@50Hz (Current) ≥300VAC@50Hz (signal) Housing Sanding oxidation black of aluminum alloy
Insulation 300MΩ@500VDC (Current) 100MΩ@300VDC (signal) Wire Length Stator Wire: 1000mm Rotor Wire: 1000mm
Environment Remarks
Temperature -40°C to +60°C Installation Method Rotor fixed on customer-provided flange
Humidity ≤60%RH
IP Rating IP54
Main Applications
  • Packaging and wrapping machinery
  • Semiconductor handling systems
  • Industrial machinery
  • Exhibit display machinery
  • Medical equipment
  • Rotary index tables
  • Process control equipment
Company Advantages
  • 12,000+ square meter facility with 500+ employees
  • Recognized as "National High and New Technology" company with 69 patents
  • Long-term partnerships with global enterprises worldwide
  • 10,000+ successful designs for civil, military, commercial and industrial applications
  • Established in 1996 with 20+ years of production and R&D experience
  • Free custom slip ring solutions for various equipment requirements
  • Fast delivery options available
JINPAT Pancake Slip Ring with 10 Circuits 5A per Circuit and 220VDC/AC Voltage Rating for Industrial Applications 0
Typical Application
JINPAT Pancake Slip Ring with 10 Circuits 5A per Circuit and 220VDC/AC Voltage Rating for Industrial Applications 1
Company Information
JINPAT Pancake Slip Ring with 10 Circuits 5A per Circuit and 220VDC/AC Voltage Rating for Industrial Applications 2 JINPAT Pancake Slip Ring with 10 Circuits 5A per Circuit and 220VDC/AC Voltage Rating for Industrial Applications 3 JINPAT Pancake Slip Ring with 10 Circuits 5A per Circuit and 220VDC/AC Voltage Rating for Industrial Applications 4 JINPAT Pancake Slip Ring with 10 Circuits 5A per Circuit and 220VDC/AC Voltage Rating for Industrial Applications 5
Frequently Asked Questions
What do we do?

We focus on developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.

What is a slip ring?

A slip ring is an electromechanical device that allows transmission of power and electrical signals from stationary to rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone wires in movable joints.

What kinds of slip rings do we offer?
  • Electrical Slip Rings (capsule, through-hole, miniature)
  • Signal Slip Rings (USB 2.0/3.0, fiber optic rotary joints, high frequency)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
How do I choose a slip ring?

Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance in selection or custom solutions.

Do you offer custom slip rings?

Yes, our engineers develop perfect custom solutions tailored to your specific needs. Contact us to discuss your requirements.
